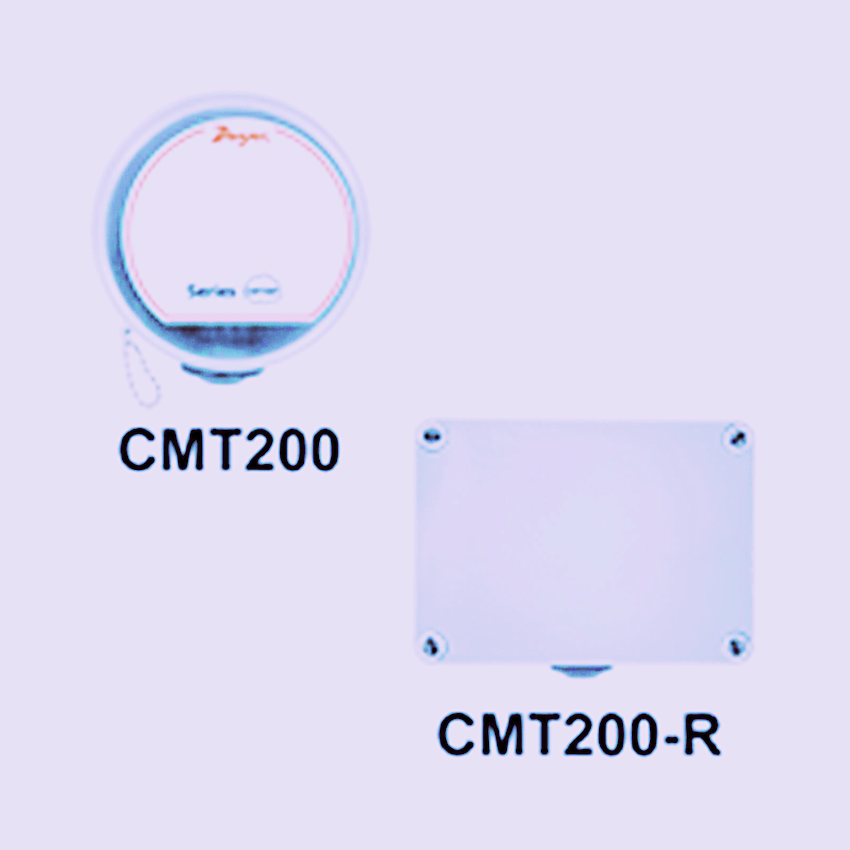

DWYER一氧化碳变送器CMT
详细信息| 询价留言品牌：DWYER 型号：CMT 加工定制：否 测量范围：0--125PPM 测量对象：气体 测量精度：3% 分辨率：1% 电压：24 v 测量精度：3% CMT一氧化碳变送器能准确地检测和传输低浓度的一氧化碳。变送器可以订购壁挂或管道安装配置。通用的电流和电压输出是现场可选的，并匹配*常见的建筑物管理控制器。可选继电器和警报蜂鸣器可直接连接到壁挂式警告灯或排气风扇上。该系列CMT可以现场校准。软件设置，如可选继电器输出的设定值，都有密码保护。
Range:0 to 125 PPM CO.
Accuracy:±2.5% of reading.
Repeatability:±1% of reading.
Response Time:Less than 60 seconds typical for 90% step change.
Ambient Operating Temperature:-4 to 104°F (-20 to 40°C).
Ambient Operating Humidity:15 to 90% non-condensing.
Power Requirements:24 VDC/VAC at 100 mA.
Internal Display:Two line 8-digit alphanumeric LCD.
Sensor:Electrochemical (2 to 3 year expected life typical).
Output: Current/Voltage:4 to 20 mA and 2 to 10 VDC; Optional Relay: (2) SPDT 1 Amp dry contact; Buzzer: 85 dB @ 1 foot.
Coverage Area:7500 square feet (max).
Weight:5.7 oz (161.6 g).
Model Description CMT-DN Duct mount carbon monoxide transmitter, with 4-20 mA and 2-10 VDC outputs. CMT-DN-D Duct mount carbon monoxide transmitter, 4-20 mA and 2-10 VDC outputs, with display. CMT-WN Wall mount carbon monoxide transmitter, with 4-20 mA and 2-10 VDC outputs. CMT-WN-D Wall mount carbon monoxide transmitter, 4-20 mA and 2-10 VDC outputs, with display. CMT-WN-WP Wall mount carbon monoxide transmitter, 4-20 mA and 2-10 VDC outputs, in NEMA 4X enclosure. CMT-WR-WP Wall mount carbon monoxide transmitter, 4-20 mA and 2-10 VDC outputs, NEMA 4X enclosure, with alarm relay and buzzer -
